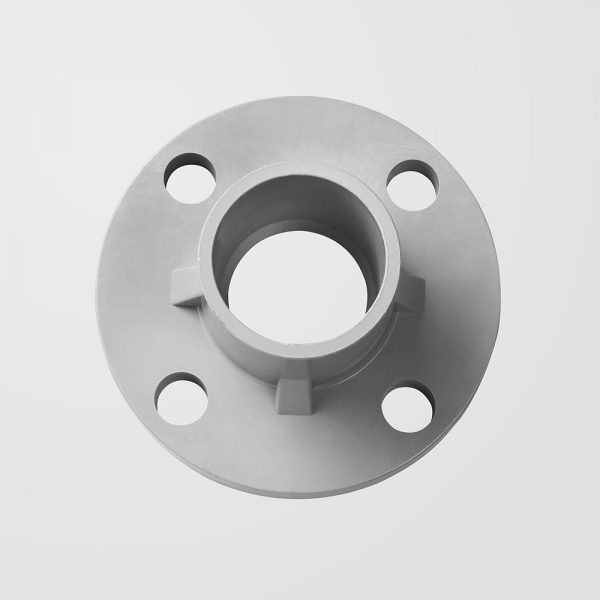

PVC Flange 'D' JIS 10K, BBB

RM42.00RM72.00
RM15.54RM26.64

BBB u-PVC Fittings are suitable for a wide range of cold-water pressure applications, including water supply, irrigation, drainage and industrial applications. Joining method with Solvent Cement.

Standard: MS 628 / BS 3505

Catalogue: BINA Plastic



Brand:

CODE NO SIZE (MM) DIMENSION (MM)
D1 D2 L1 L2 L3
FP/FLG-025 25 33.5 36.6 17.8 13.9 39.7
FP/FLG-040 40 48.2 47.7 18.0 15.6 52.8
FP/FLG-050 50 60.3 60.7 19.7 18.7 64.0
FP/FLG-065 65 75.1 75.6 22.1 16.9 69.4
FP/FLG-080 80 88.8 93.5 19.8 21.0 72.1
FP/FLG-100 100 114.2 114.6 19.8 23.8 82.8
FP/FLG-155 155 165.0 170.0 24.2 24.8 127.8
Weight N/A
PVC Sizes:

, , , , ,
